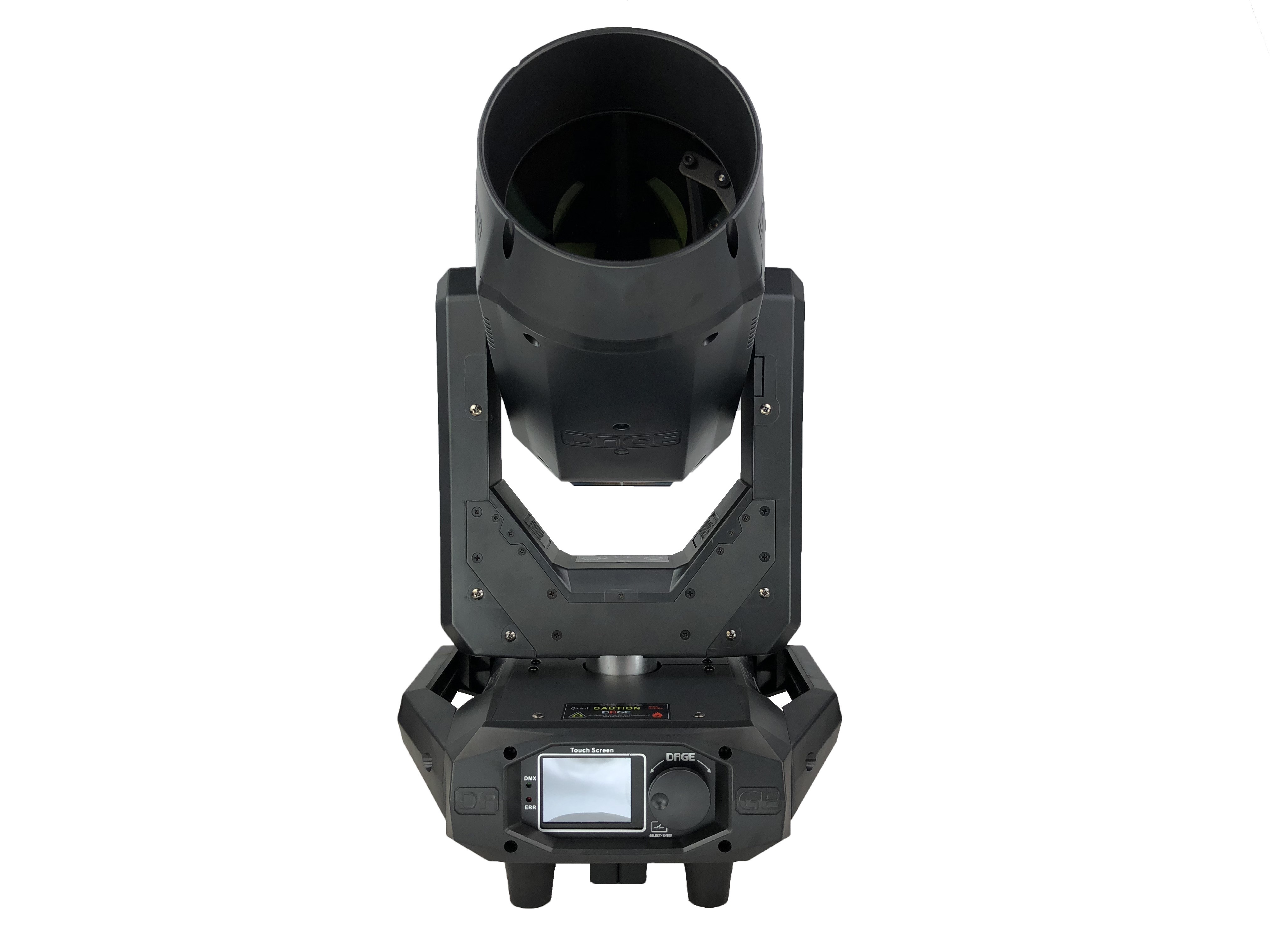

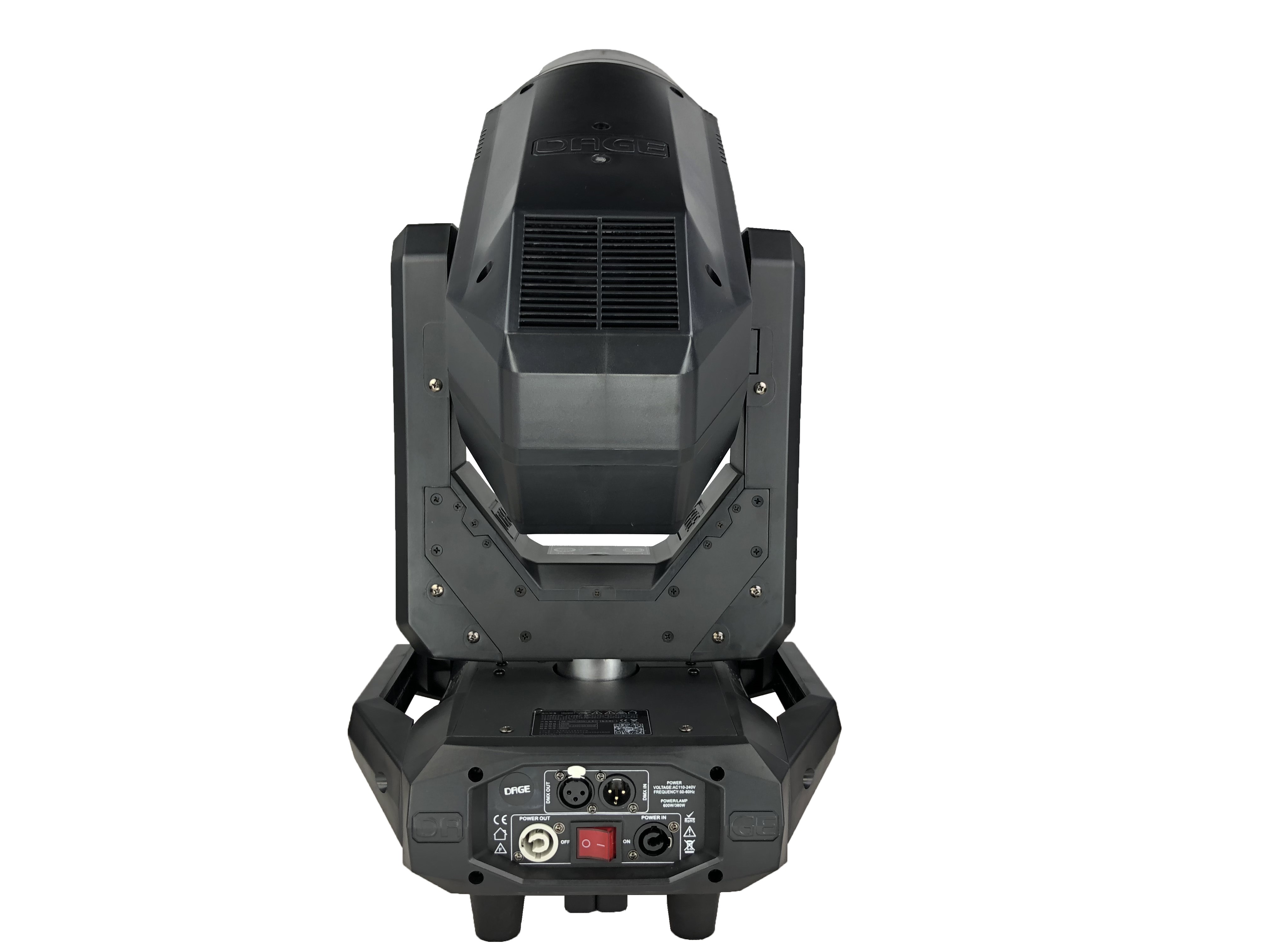

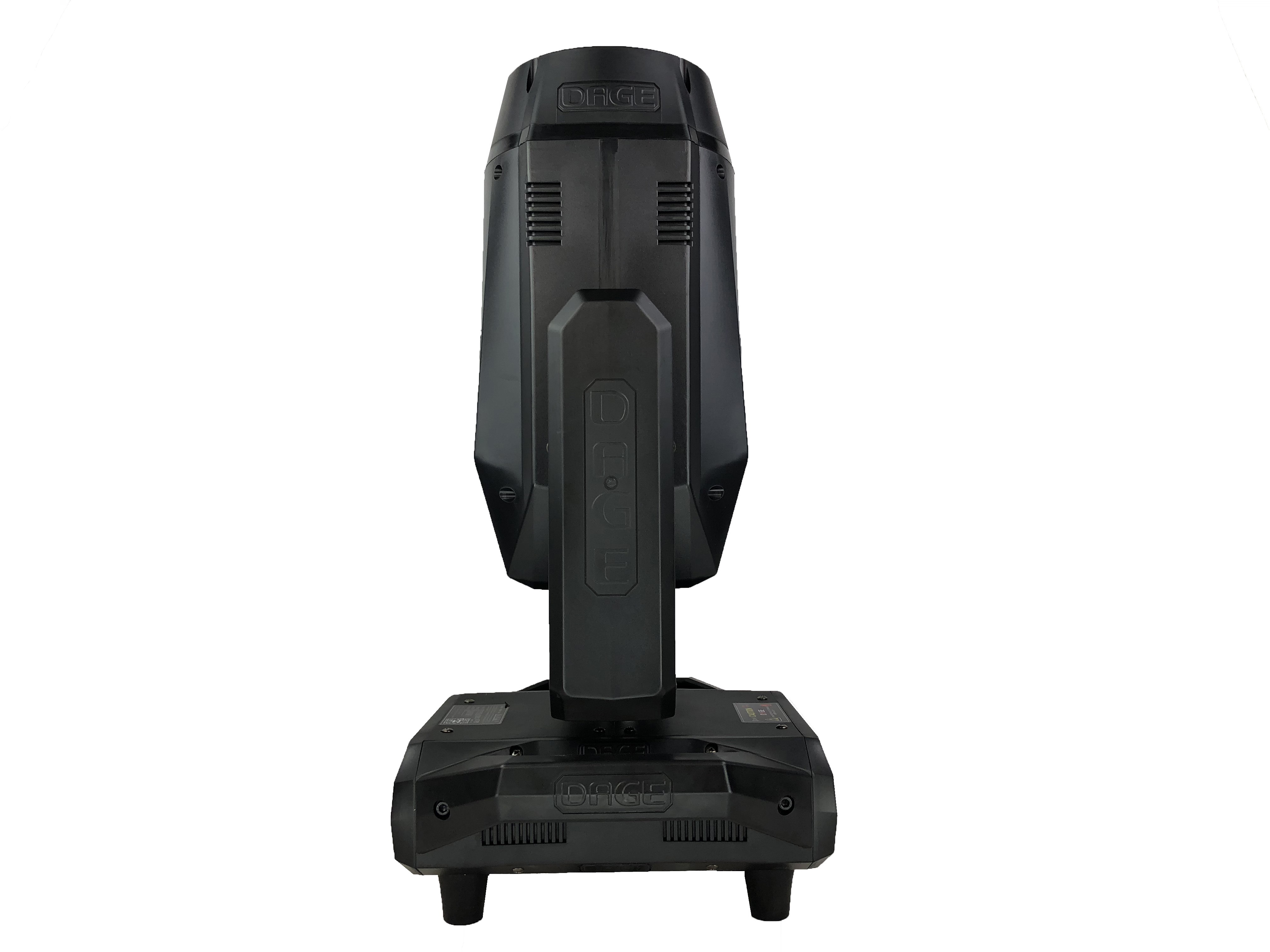

FK-3820 Optimus Prime 380w Beam Moving Head Light

FK-3820 380w Beam Moving Head Light


MAIN FEATURES:
1. Fantastic & colorful honeycomb prism+ 8 facet prism, with max. 80° prism angle, and prism auto-focusing function
2. 1 color wheel 14 colors+white+CTO, 1 gobo wheel 13 gobo+white
3. Sensitive & high speed, 3-phase motor for X/Y movement
4. Top quality in China, life-long maintain (Lamp with 6 months warranty)

5.With RDM system, can set up the DMX address on the controller directly

6.Fixed battery for the LCD display, can set up DMX address without connected to the power supply

7. With 2 clamps fixed on the light base, easy for mobile shows


OPTICAL SYSTEM:
Osram 380w lamp, CT 7800-3200K, 1500 hrs life
Italian heat-protecting glass, good dissipation
Optical lens dia. 145mm, the beam uniform, sharpy, bright

2-50° beam and frost angle

Auto beam and prism focusing function


DISPLAY SYETEM:
Display mode 20 million pixel LCD touch screen, with sleep mode function
Lamp’s life & device using time is displayable
With Automatic error tested function
LCD touch and knob control mode


CONTROL SYSTEM:
International standard DMX512
20 control channels
DMX, random, auto, voice and sleep mode
Using high-tech constant current board, 36V / 12V voltage
Built-in high -quality magnetic components ensure stable signal transmission
Data line antifreeze, in line with CE20 / 22 standard


DATA INTERFACE:
3-pin male and female connector
2. 3-pin combines 5-pin male and female connectors


POWER SYSTEM:
600w, power fluctuations (± 50W) works normally
AC110-240V/50-60HZ
Using high-tech constant current power board, first-class brand PCB components, SMT processing technology, AC voltage mode
Ground wiring in accordance with international standards
Built-in high -quality lighting power filter to ensure stable signal transmission
Power line antifreeze, in line with CE20 / 22 standard


POWER INTERFACE:
Three-pin male and female data interface, dual hand in hand power interface


STROBE SYSTEN
Independent double shutter device, 0-14 times/s
0-100% linear dimming
The lamp power is automatically reduced by 30% when it turns off in 5 seconds
Remote control switch and boot light function for bulb, default as remote control


COLOR SYSTEM:
Imported Italian specialty high temperature materials, Germany's high-tech coating technology
14 color +open+CTO

6 color Rainbow wheel
Semi- color, full-color, single-color gradients, changeable fast forward and reverse direction rotating rainbow effect
Automatic error correction at any angle with hall, magnet positioned


GOBO SYSTEM:
13 metal gobos + open, 4 class adjustable beam angle, enabling water, shake, slow-fast rotation effect
Imported Italian specialty refractory metal materials
Automatic error correction at any angle with hall, magnet positioned


FROST SYSTEM:
Frost setting: Independent single-sided high penetration frost lens
Frost effect: Various changes of frost effects
Frost angle: The largest is 50°


PRISM SYSTEM:
Prism Material: Italian heat-protecting glass. Germany's high-tech coating technology
Prism structure: 8,24 Honeycomb prism, can overlap 32 Honeycomb prism effect at the same time
Rotating angle is adjustable. The largest prism angle is 80°


COOLING SYSTEM:
Excellent aluminum material, good heat dissipation and light weight
Fan Qty: 6pcs
Thermal protection: Built-in overheating protection


ROTATION SYSTEM:
XY motor: Fast and quiet 3-phase motor
XY position: Encoder& Hall components position and advanced scanning memory function
Pan:540° (16/32 bit)
Tilt 270 ° (16/32 bit)



LIGHTING DESIGN:
Metal Plate: Creative high quality raw material
Housing design: user-friendly, nice looking, tough and neat



REMARKS: DAGE lighting reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.

Light Specification:

Dimension: 320*300*600 (mm)

Net weight: 16 kg


Packing:

Carton 1 in 1: 610*480*490 (mm)            G.W.: 32 kg

Flight case 2 in 1: 830*430*850 (mm)       G.W.: 73 kg


Accessories:


Folding clamps: 2 pcs

Safety rope: 1 set

Bakelite plug: 1 pair

3m signal cable: 1 piece

1.5m power cable: 1 set
